What You'll Learn

In this tutorial, you' learn how to set up C++ on your computer on VSCode. You'll learn how to set up CMake on your computer, and build a C++ project using CMake. You'll install SDL libraries onto your computer, you'll learn how to include those libraries in VSCode. By the end of this tutorial, you'll be able to build a C++ SDL project using CMake in VSCode.

Some may be able to skip parts of this tutorial. For instance, people who already have C++ set up may skip to page 6. People who already have CMake may skip to page 7, and people who already have git may skip page 7 as well.

Install VSCode

For this tutorial, we'll be using VSCode to edit code, and it's terminal to run commands.

Start by installing VSCode here, be sure to install for the correct operating system!

Launch the installer you downloaded, and click next through the process to install VSCode to whatever folder you'd like.

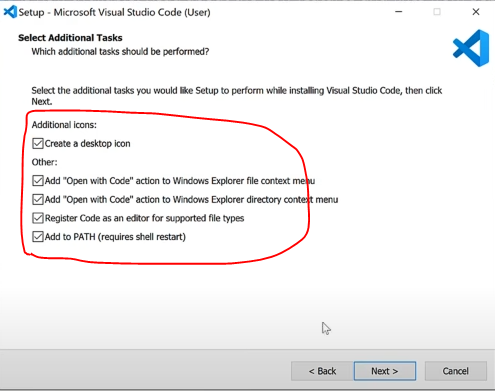

• Make sure ALL these boxes are checked!

Video instructions for Windows: https://www.youtube.com/watch?v=DMWD7wfhgNY&ab_channel=KennyYipCoding

Video instructions for MacOS: https://www.youtube.com/watch?v=tdAD0WZjXrM&ab_channel=CodeWizard

Install MSYS2

We'll be using MSYS2 for our C++ compiler. Download the MinGW installer with this link.

Open the installer, and run through the steps to set up your compiler.

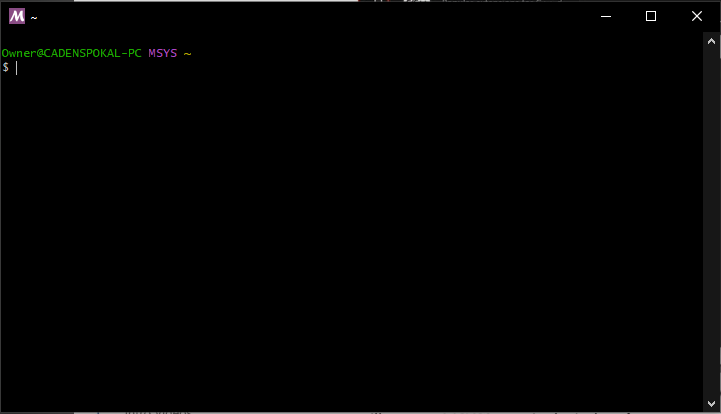

On every page, just click next without changing anything. On the final page, make sure the Run MSYS2 now. box is checked, and press Finish. This will open up the MSYS2 shell.

Install MinGW Toolchain

In this terminal, install the MinGW-w64 toolchain by running the following command:

pacman -S --needed base-devel mingw-w64-ucrt-x86_64-toolchain

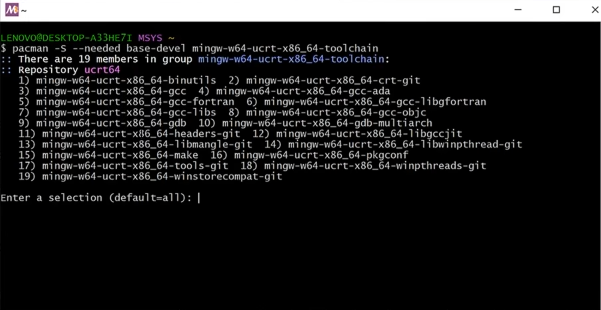

Press enter. The terminal will ask you for a download selection. Download everything, by just pressing Enter.

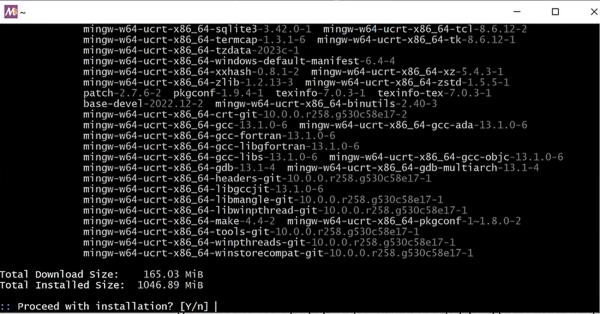

When asked to proceed with the installation, type Y, then press Enter.

Once the installation is completed, you may exit the MSYS2 window.

Add MinGW to enviroment variables

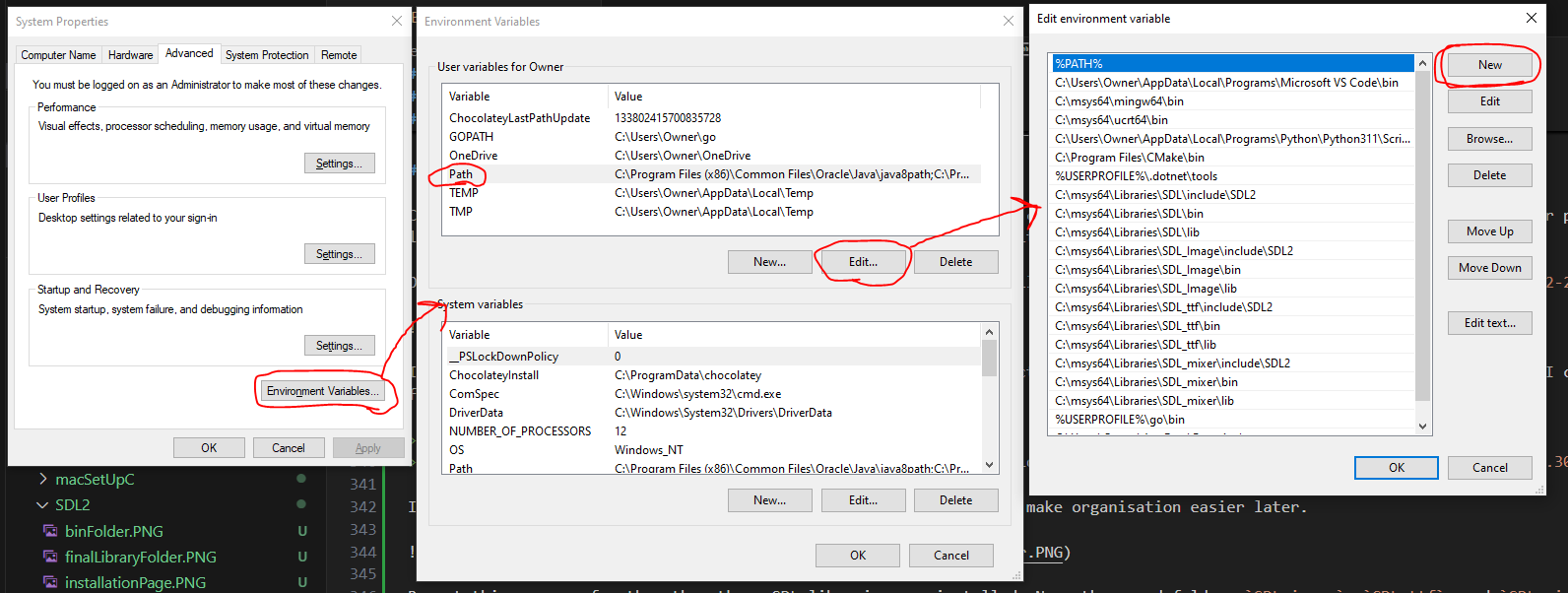

For everything to work, we need to make the C++ compiler an "enviroment variable". Go to the Windows search bar, and look for "environment variables", and open the first option.

From here, click "Environment Variables".

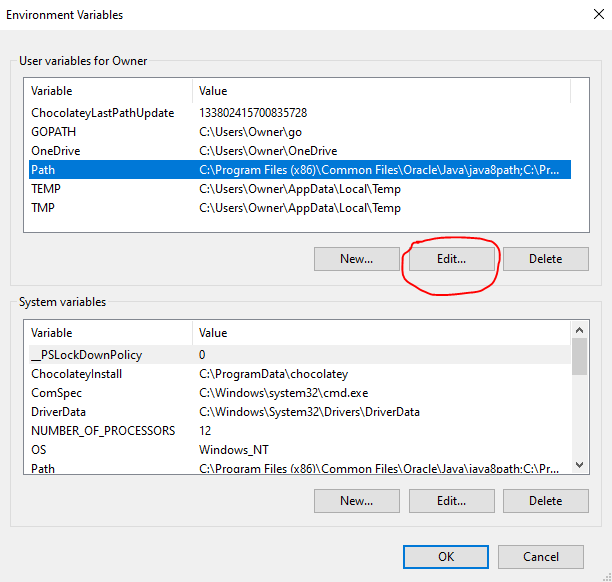

Then in the top box, click "Path", then click "Edit".

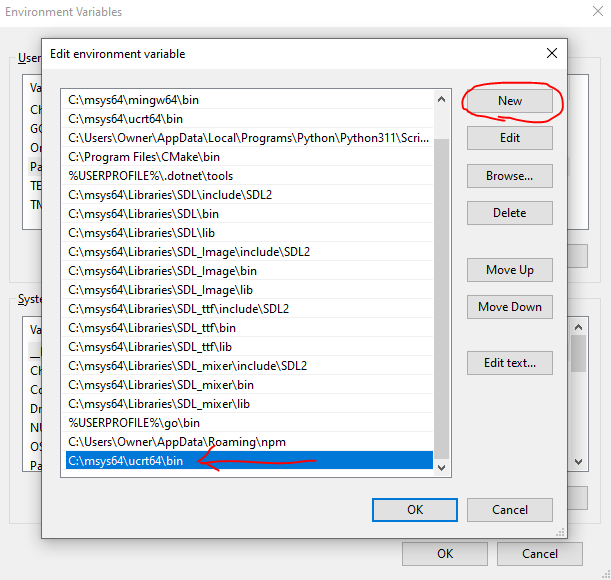

You want to add the following directory to your path:

C:\msys64\ucrt64\bin

To add to path, press "New", then paste in that directory, and press "Enter".

Press "Ok", then exit the environment variables window.

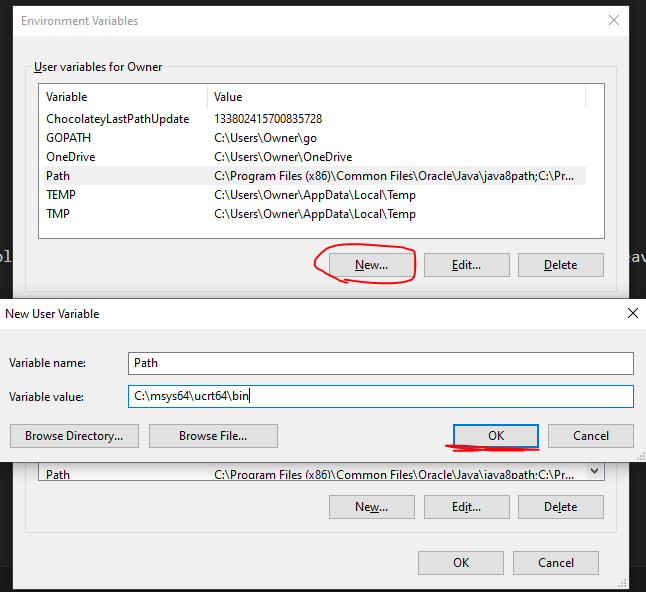

• If for some reason you don't have a "Path" variable in the top box, press "New", then enter "Path" for the Variable name, and paste the directory for the Variable value, the click "Ok".

Checking Installation

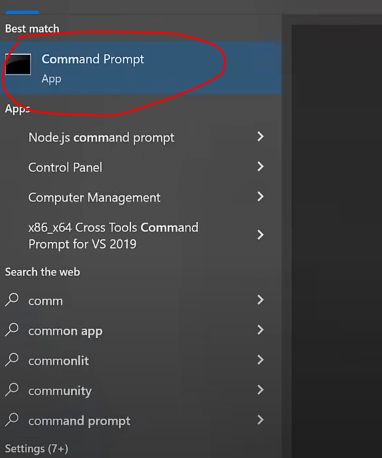

Let's confirm everything installed correctly by checking that compiler commands work. Open up a command prompt from the windows menu.

To check if the compilers are all working, run these commands one at a time in the terminal:

gcc --version
g++ --version
gdb --version

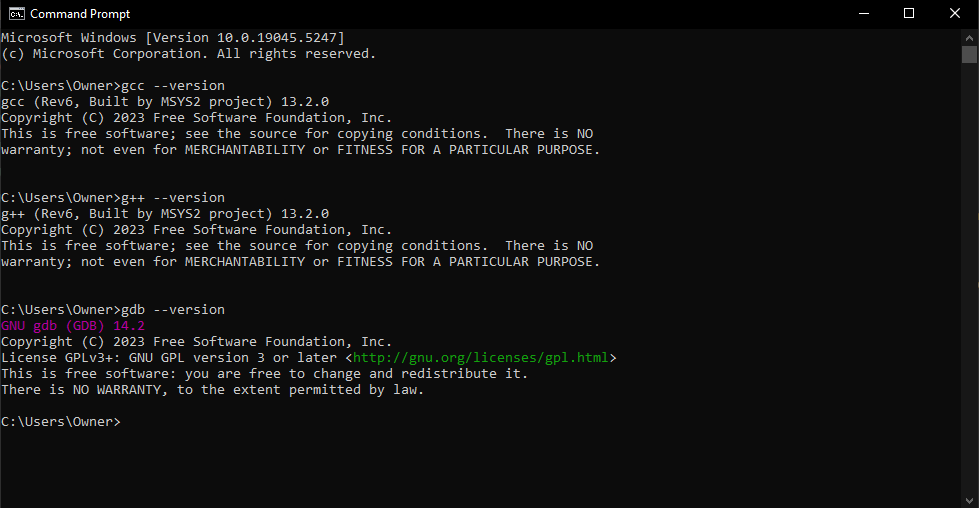

The output should look something like this:

If you get some kind of error for the output, make sure everything was installed correctly. Go back and make sure C:\msys64\ucrt64\bin was added to the "Path" system environment variable, then try again.

Install Clang through terminal

Press Cmd+Space, look for "terminal", and open the terminal app. Let's start by checking if clang has already been set up. Run this command in the terminal:

clang --version

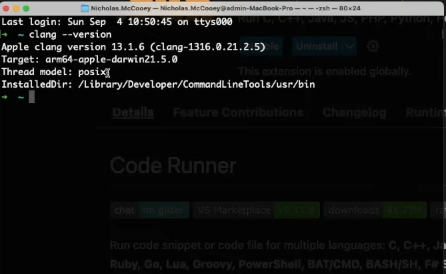

If clang has already been set up, you should get an output like this:

If you get get an error of some kind, then you have to install the xcode command line tools. To do this, run this command:

xcode-select --install

After this finishes, run clang --version again, to make sure it works

aside positive The actual version number shouldn't matter too much, we're just making sure the command actually works.

VSCode extensions for C++

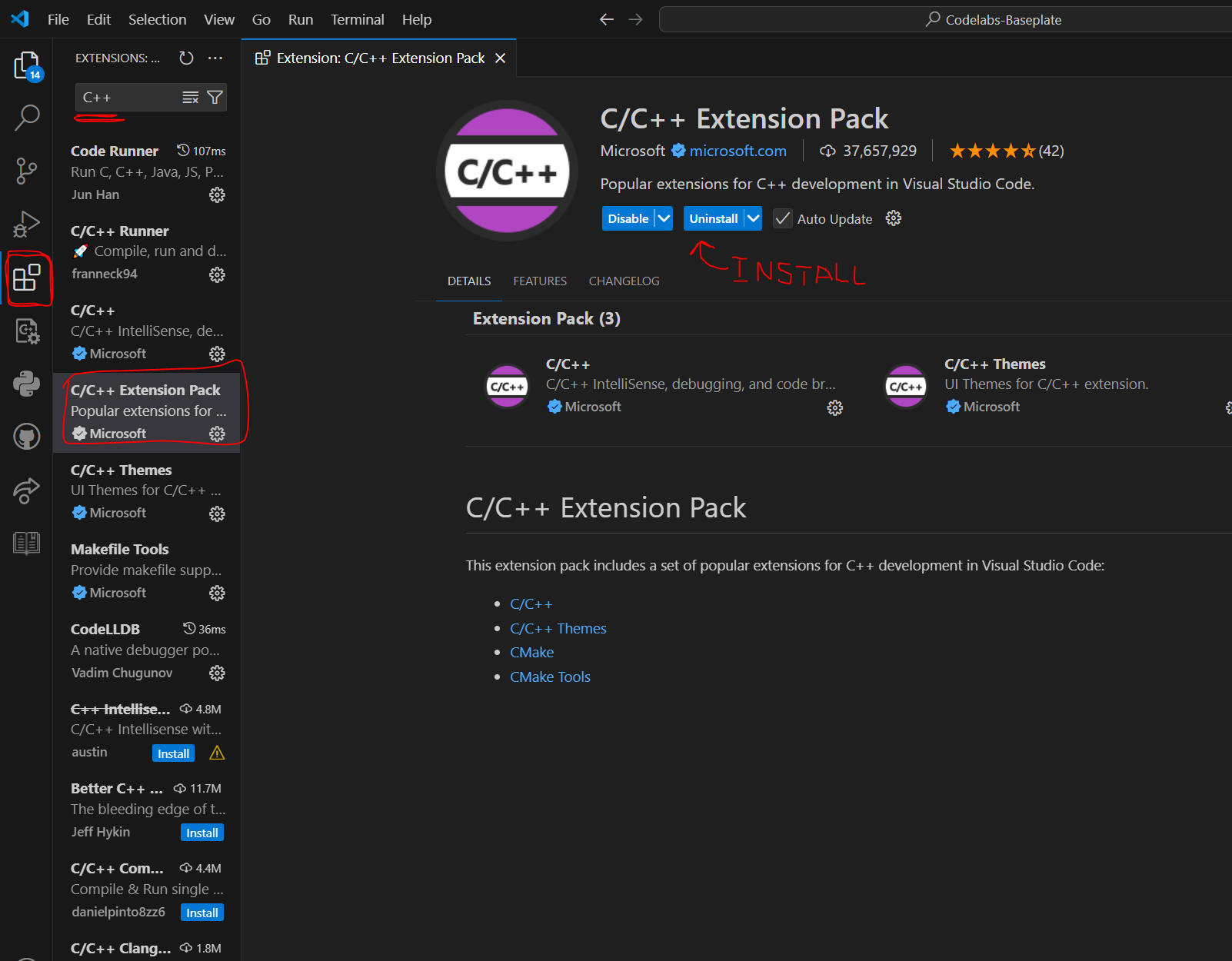

Open up VSCode. Go to the "Extensions" page on the right. In the search bar, type "C++", and install this extension:

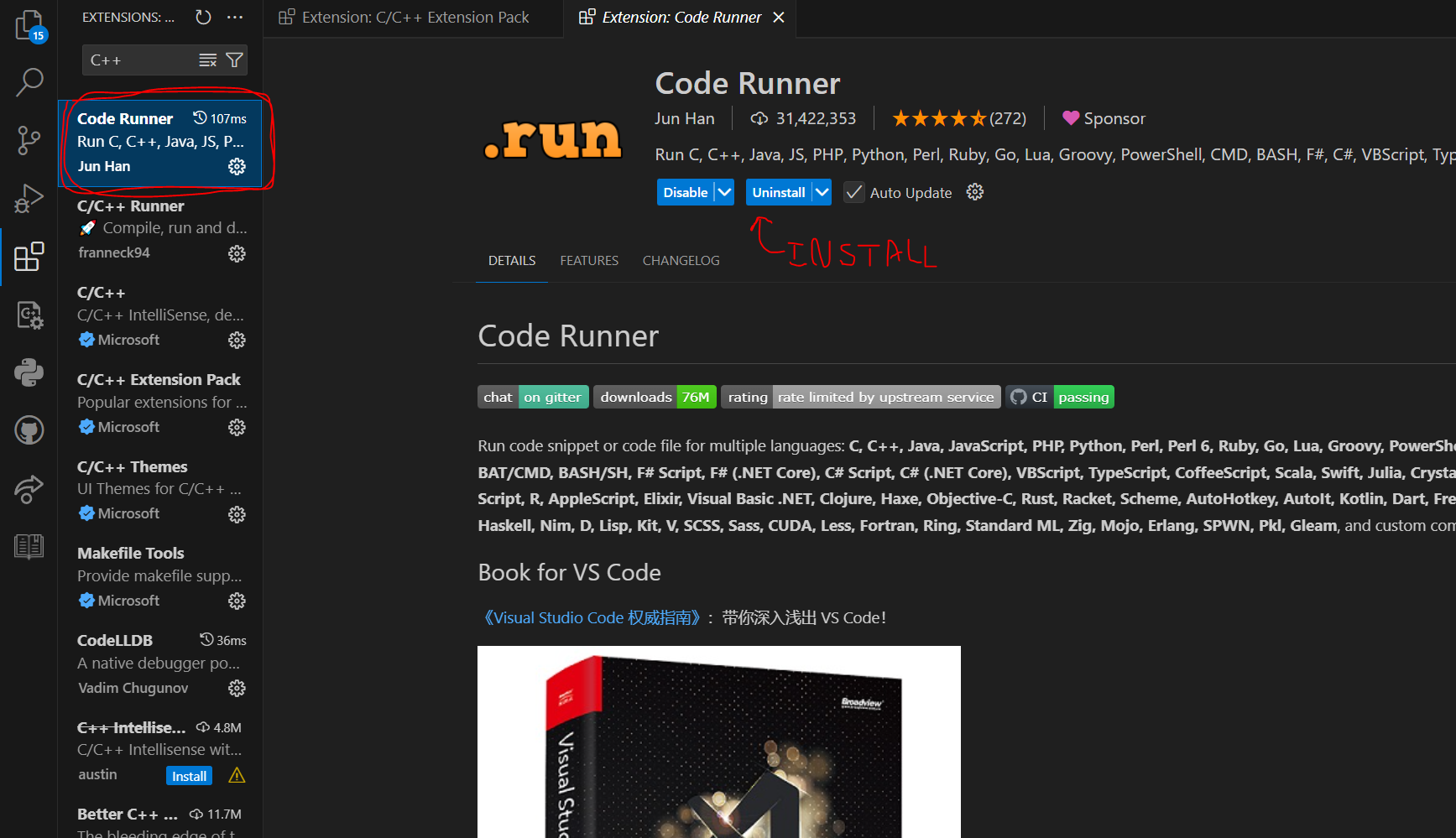

Also make sure to install this "Code Runner" extension:

Testing C++

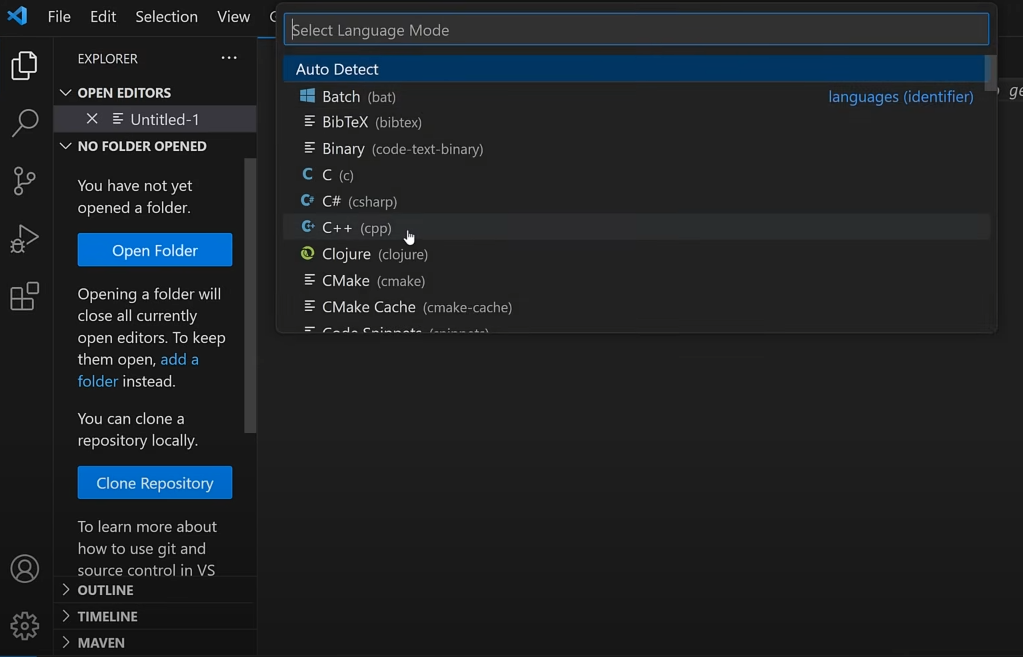

In the top left corner of VSCode, select File->New Text File. In the editor, click, "Select a Language", Then choose "C++"

Before making any edits, go to File->Save As, and save the new file wherever you want (we're gonna delete it when we're done anyways). Name the file "test" (or whatever you want).

Now go to the editor, and just paste this code:

#include <iostream>

int main() {
    std::cout << "Hello World!\n";
    return 0;
}

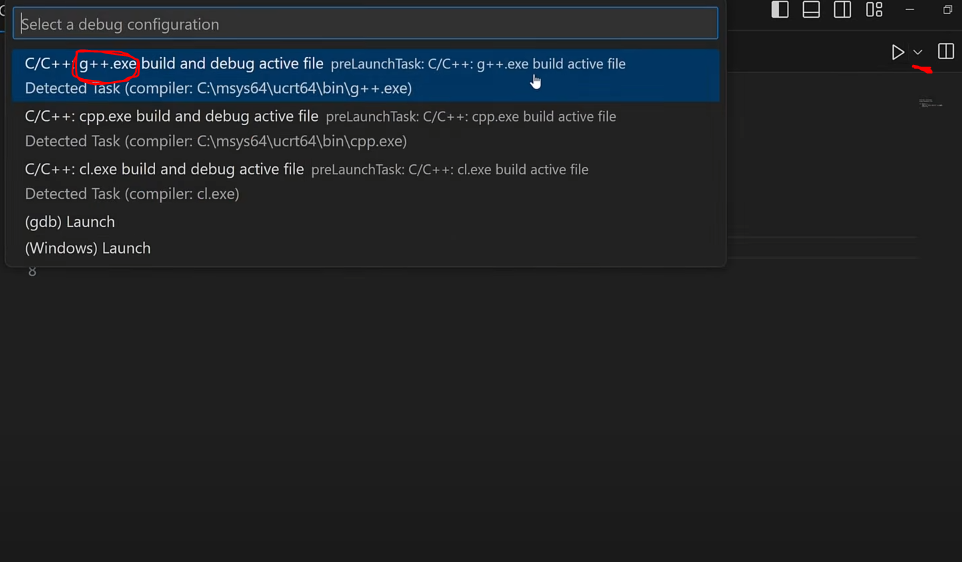

Now save the changes, and in the top right, there should be a little play button with a drop down arrow. Press the drop down arrow, and choose "Run Code". If a list of compilers pops up, choose the "g++.exe" option (it'll probably be the first option). If you're on Mac, this will probably be a "clang" option, instead.

If everything ran correctly, you can go ahead and delete these test files.

Error Handling

If the code doesn't print "Hello World", look at the error message in the terminal. If you're getting some kind of undefined reference error, there is an issue with your installation of the C standard library. Ensure you properly installed the MinGW toolkit, and added it to your environment variables. This could also be caused by using the "gcc" compiler for the C++ file, ensure you chose the "g++.exe" compiler option (clang on mac).

If there is an error along the lines of "g++ is not recognized", there is likely an issue with the installation of the compiler. Ensure all installation steps in this tutorial were follwed correctly. Sometimes, the VSCode terminal can throw errors that the Command Prompt won't. Open the command promp and test to see if the g++ --version command throws an error (clang --version for mac). If it doesn't, then it's probably VSCode that's messed up. Try alf+f4ing VSCode, then reopening it and trying again.

CMake is the tool we'll use to make building the project quick and easy. To get it, first download the CMake installer at this site, under "Binary Distributions".

In my experience, this is one of the most frustrating parts of this process, so please feel free to reach out!

Confirm Installation

To confirm you've successfully installed CMake, open the command terminal, and type this command:

cmake --version

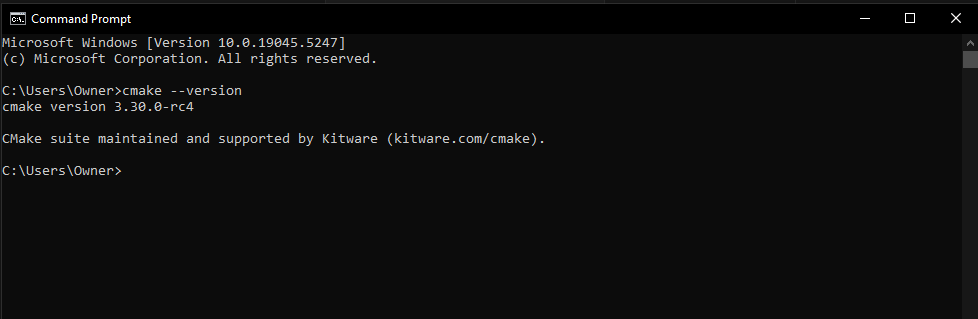

You should get this output:

Like before, the actual version number doesn't really matter, we're just making sure the command works. If it doesn't, ensure you downloaded the right installer for your computer from the website. Windows users, ensure cmake actually added it to the system's Path environment variables.

CMake Tools Extension

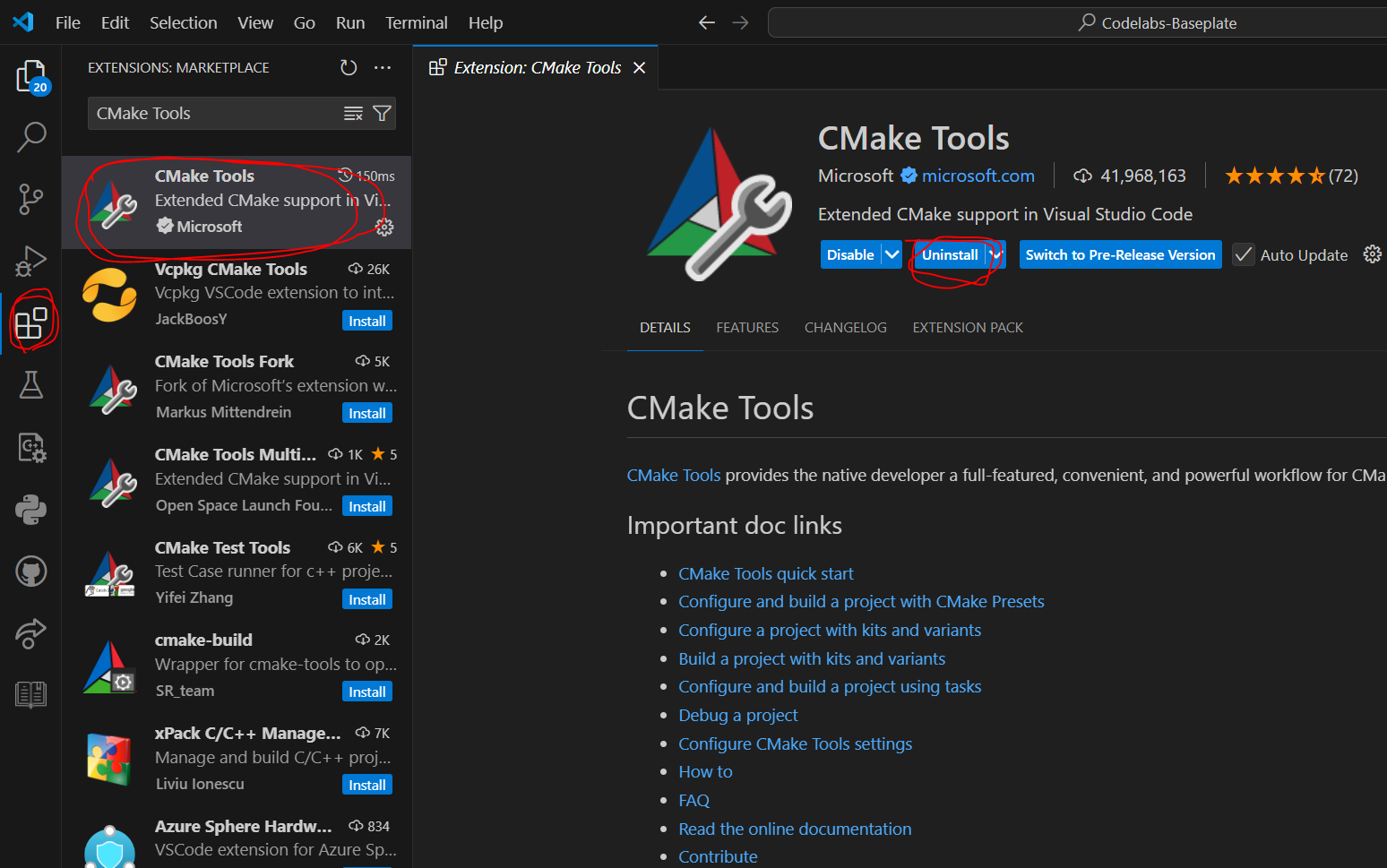

Let's add another VSCode extension so we can develop with CMake. Install the "CMake Tools" extension:

Here is a link to a good video resource for setting up CMake. Skip to 1:26 for the installation steps.

Testing CMake

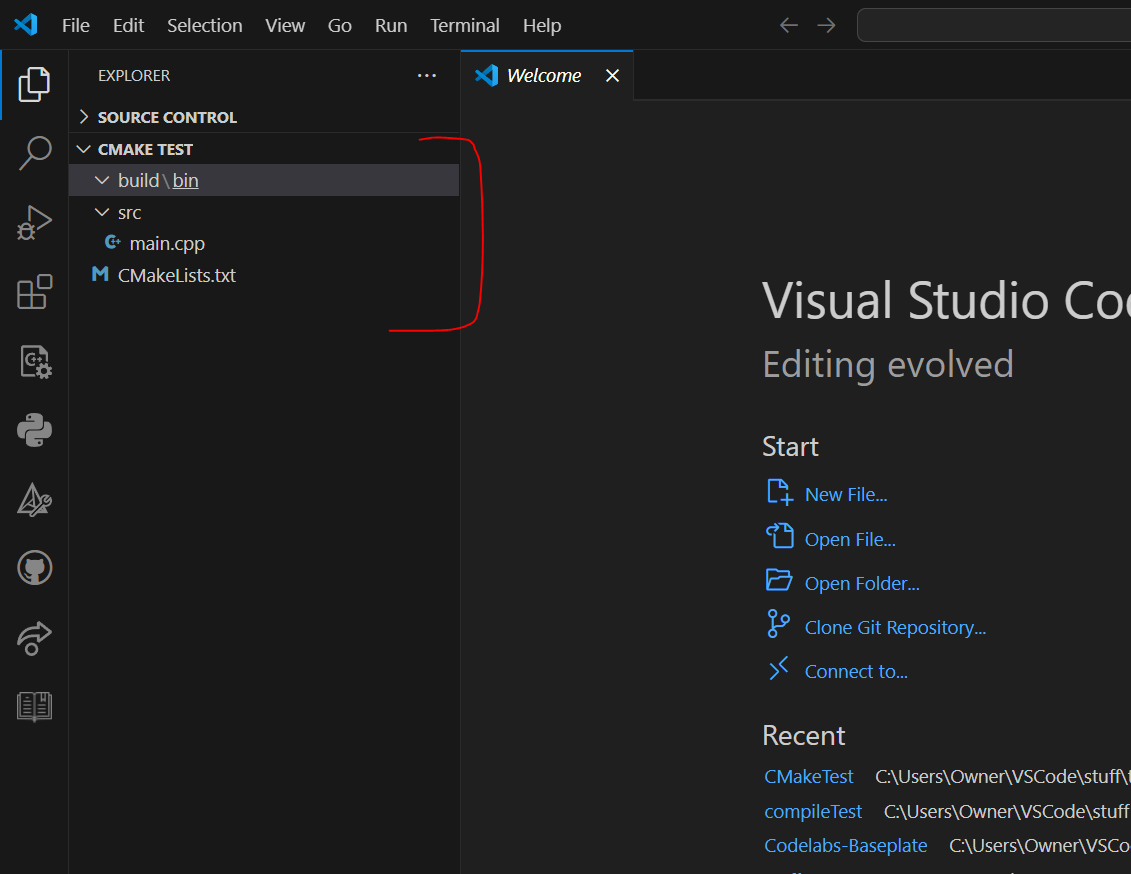

With everything installed, let's test an actual CMake build. Instead of making you actually code anything, just download this .zip file to test with. Extract the folder anywhere, then open it in VSCode. Your VSCode should look like this:

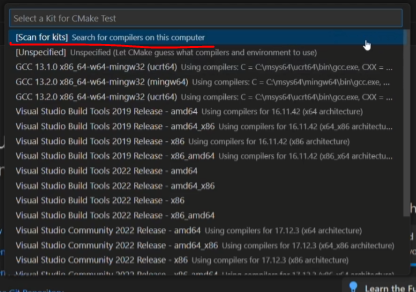

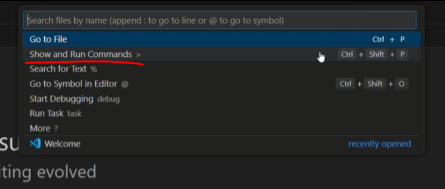

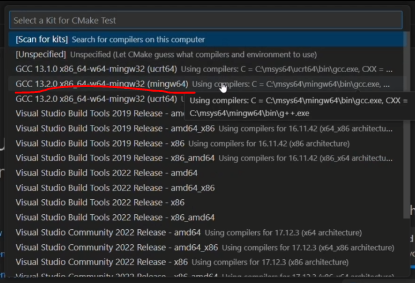

At the top of the window, click on the bar that says "CMake Test", then select "Show and Run Commands". Type "CMake: Select a Kit", and press enter. Select "Scan for kits". Once it's done, click on the bar again, select "Show and Run Commands" again, and select "CMake: Select a Kit" again.

• Sorry for poor image quality here :(

On the terminal at the bottom of the screen, click on the "TERMINAL" tab to start entering commands.

Now, in the terminal, type these four commands one at a time:

cd build
cmake ..
cmake --build
./bin\test.exe

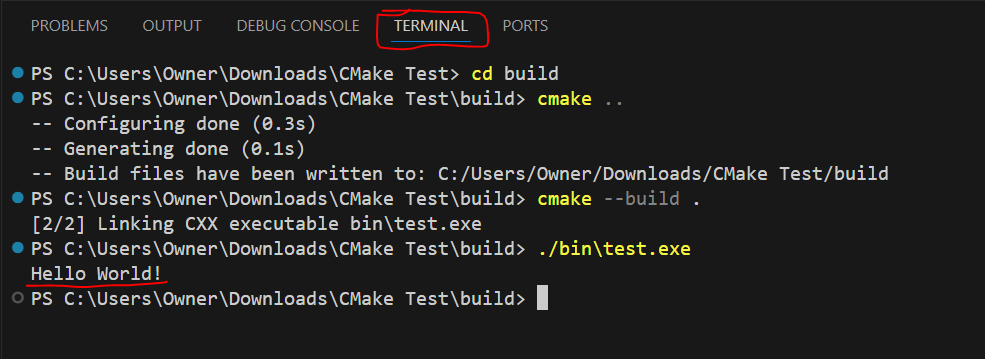

The output should say "Hello World!", like this:

If the output fails, and this doesn't happen, make sure the correct kit was selected in the last step. If the terminal says something like "cmake is not a recognized command", ensure cmake --version works in the command prompt terminal, and try alt+f4ing VSCode and retrying the process. Also ensure you are sunning the final three commands from the "build" folder.

This page is a WIP

git is optional for this tutorial, but is strongly reccomended for development in general.

Installation

Simple Directmedia Layer (SDL) is the graphics rendering API that the engine uses to render images and play sounds. We're actually going to install four libraries in order to build this project. Below are the libraries, and links to their download pages.

1. SDL - The main rendering API
2. SDL_image - Used for loading images from file
3. SDL_ttf - Used for rendering text
4. SDL_mixer - Used for playing audio

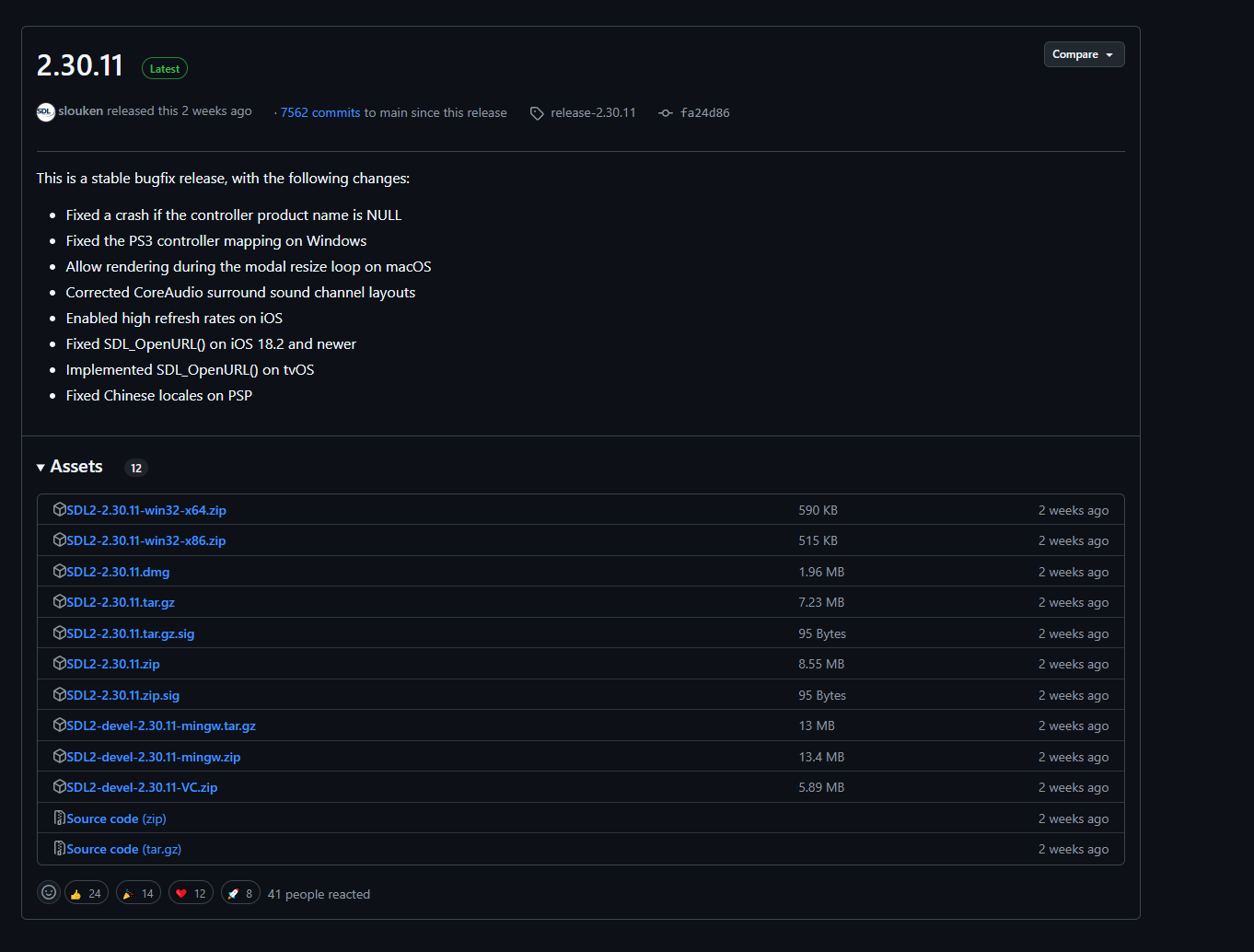

On these download pages, there will be a bunch of different installation options. Choose the installation option fit for your computer architecture. For development, I reccomend choosing one of the .zip files containing "devel". In this tutorial, I installed the SDL2-devel-2.30.11-mingw.zip option.

File Management

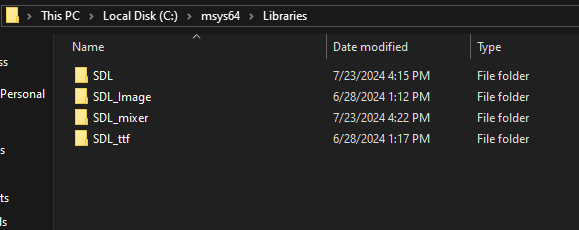

Create a folder for libraries, called Libraries, anywhere on your computer (Note: if you already have a dedicated folder for programming libraries, you may use that one). This is where we will store the SDL libraries. I put this folder in C:\msys64\, for convenience, but it could go anywhere.

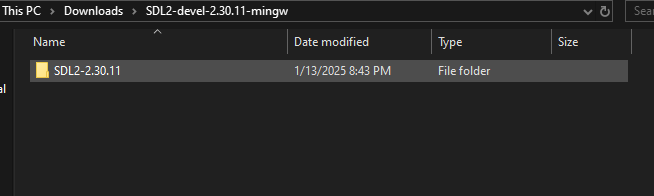

Once you have downloaded and extracted all of the SDL library zip files, open the extracted folder for SDL2, and go into SDL2-2.30.11.

In this folder, there will be a couple of folders. Select the correct folder for your system architecture. In this tutorial, I chose i686-w64-mingw32. Take this folder, and move it into your Libraries folder.

I'd reccomend renaming the folder you moved to SDL, since it will make organisation easier later.

Repeat this process for the other three SDL libraries you installed. Name the moved folders SDL_image, SDL_ttf, and SDL_mixer respectively.

Adding Environment Variables (WINDOWS)

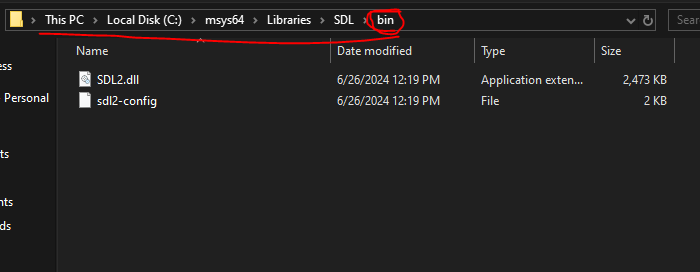

In each of the folders you moved into your Libraries folder, there will be a bin folder. This is the directory that you will need to add to your system's Path environment variabele.

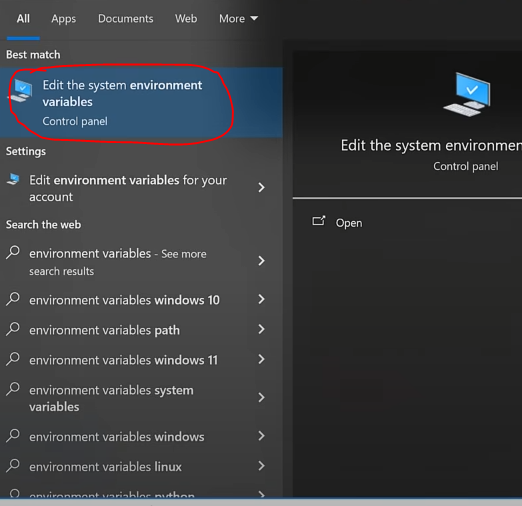

In the Windows search bar, look for and open "Edit the system environment variables". Press Environment Variables, then in the top box, click Path, then press Edit, then click New.

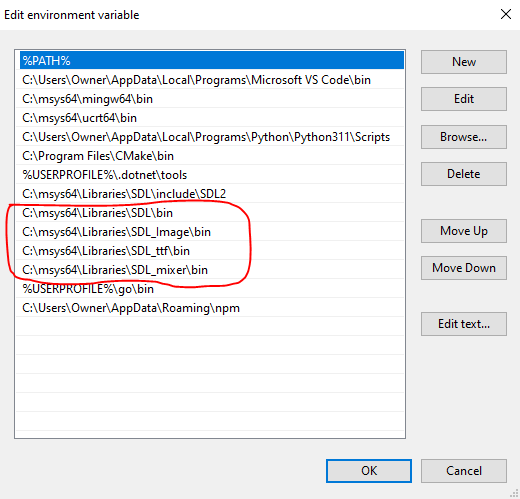

As mentioned before, each of the SDL libraries will have a bin subfolder. Add all four of these directories to the Path.

Press "Ok", and exit the environment variable editor.

With everything installed and set up, we should theoretically be done. Of course, we'll have to test to make sure that everything links and builds correctly. start by cloning this SDL baseplate project.

We're using this simpler SDL boilerplate because it'll be easier to debug if something goes wrong. Clone the baseplate into any folder by running this command from said folder:

git clone https://github.com/bustlingbungus/SDL2_Boilerplate.git

Edit CMakeLists.txt (WINDOWS)

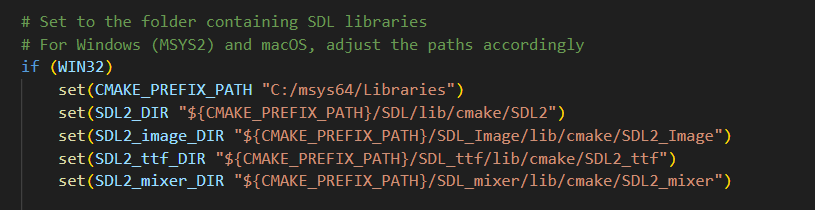

Go to CMakeLists.txt. In the section near the top where you see string directories, these need to be changed to where ever you stored SDL libraries on your computer. On line 10, se the string to the directory of your Libraries folder, where you're keeping the SDL libraries. For the next four lines, just make sure the main folder names are the same as yours. I.e., line 12 has "${...}/SDL_Image/...", so ensure your library folder containing SDL_image is called SDL_Image.

Building Project

Now enter this folder you created in VSCode. Select the appropriate CMake kit, as we did on page 7. Run these five commands in the VSCode terminal (also like we did on page 7).

cd build
cmake ..
cmake --build .
cd bin
./project.exe

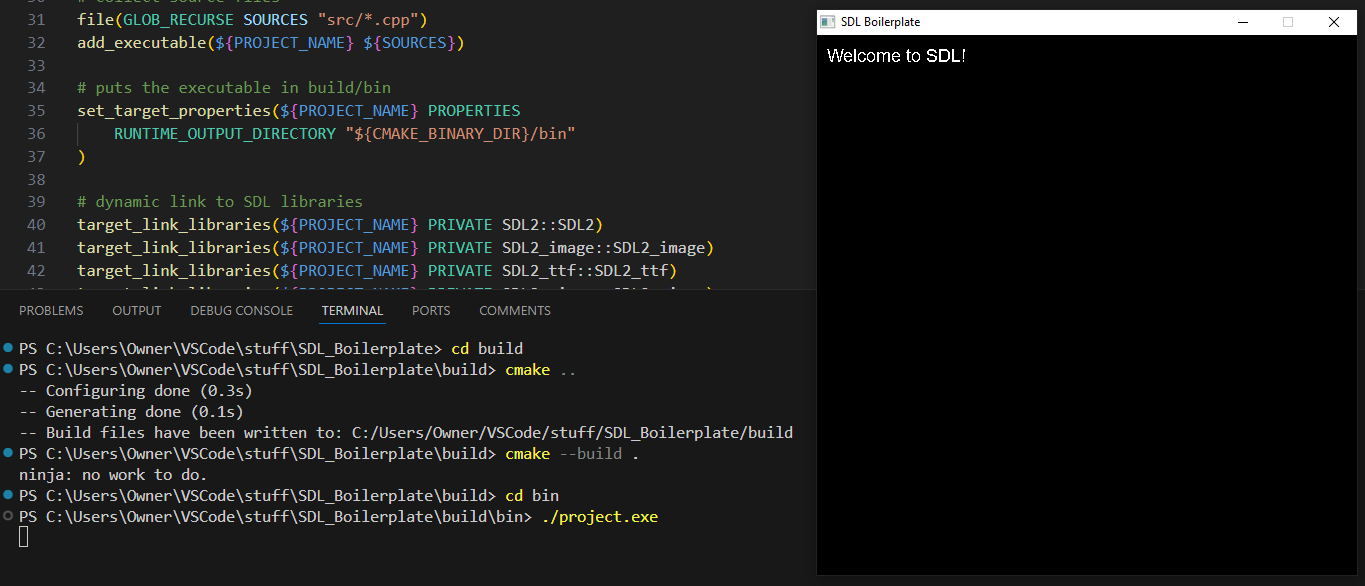

You should see a window open, like this:

If you get a result like this, you're good to go! You shouldn't need to do any more setup. If you successfully build this project, you should have no trouble building any of my other SDL projects.

If you get an error, ensure all the steps were followed correctly. Ensure all SDL include directories are included in your include path. Windows users, ensure SDL bin directories are in the environment path. Ensure the SDL library files you installed form the website is the correct version to install for your computer.

Build Automation

As mentioned earlier, this build process will be automated with the press of a button. Included in the repository is .vscode/tasks.json. You don't need to edit this at all, it's just the file that tells VSCode to run all the commands you just did. On VSCode, press Ctrl+Shift+B this should build the project automatically, and you'll get the same result as before. Way more convenient than typing a bunch of terminal commands!

If you successfully build the project on the last slide, then you should now be able to build any SDL project easily using CMake. The hard part is over, you can now get to actual development.

Congrats on making it through, I know setting things like this up with C++ can be an absolute nightmare.
